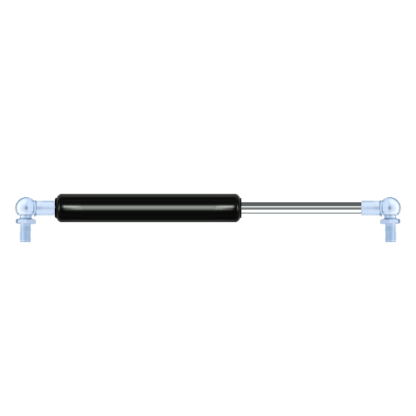

Replacement for Airax Rayflex 6858824405502 550N



Replacement gas spring for the Airax Rayflex 6858824405502 550 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
This gas spring is also known as 588244-CRR 550N, 50006858824405502, 6858824405502.00.
Airax Rayflex 6858824405502
elbow ball removal

The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 80 mm. In total, the length is 245 millimeter. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 205 mm. The force of this replacement gas spring is 550 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. The force (550 N) and dimensions are nearly identical to the original.
