Replacement for Airax Rayflex 6856354603501 350N

$28.55




Replacement gas spring for the Airax Rayflex 6856354603501 350 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as 563546 350N, 50006856354603501, 6856354603501.00.
Airax Rayflex 6856354603501
AX16

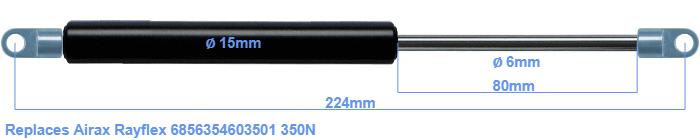

The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The rod (the chrome part) is 80 mm long. The total length of this replacement is exactly 224 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. The force of this replacement gas spring is 350 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, the force and dimensions nearly equal.
