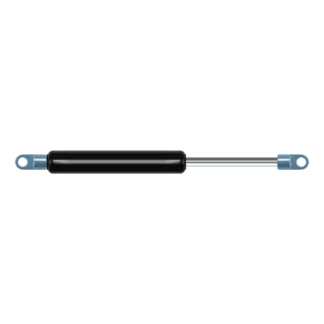

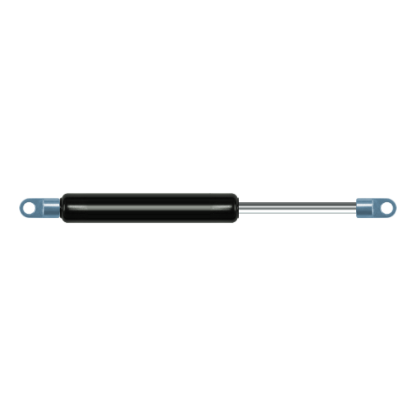

Replacement for Airax Rayflex 6856352801001 100N

$28.37




Replacement gas spring for the Airax Rayflex 6856352801001 100 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as 563528 100N, 50006856352801001, 6856352801001.00.
Airax Rayflex 6856352801001
AX16

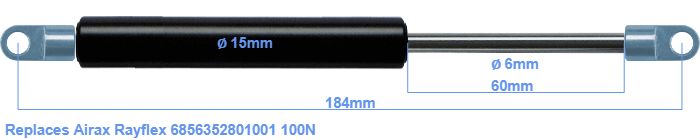

The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod is 6 millimeter. The stroke of the gas spring is 60 millimeter. The total length of this gas strut is 184 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 152 millimeter. The force of this replacement is 100 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are close to equal.
