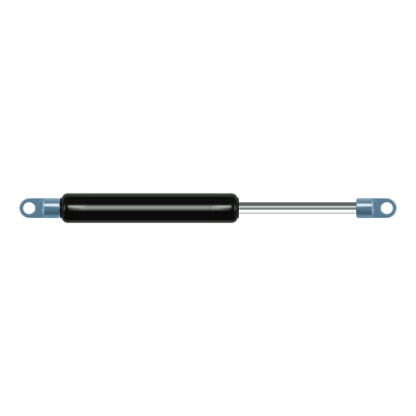

Replacement for Airax Rayflex 6856350204001 400N

$28.37




Replacement gas spring for the Airax Rayflex 6856350204001 400 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as 563502 400N, 50006856350204001, 6856350204001.00.
Airax Rayflex 6856350204001
AX16

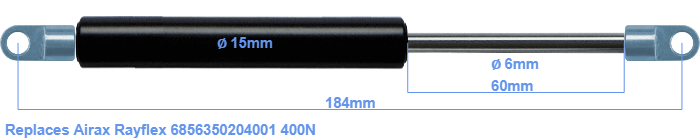

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod is 6 millimeter. The chrome part is called the rod. It has a length of 60 mm. The total length of this gas strut is 184 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 152 mm. This gas spring (6856350204001) has a force of 400 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
