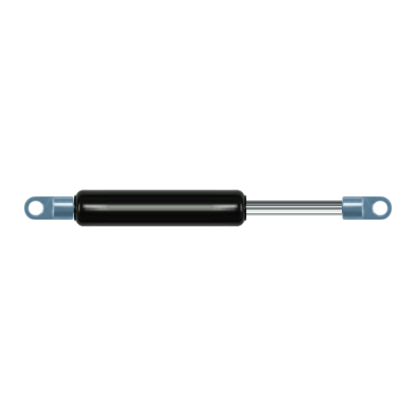

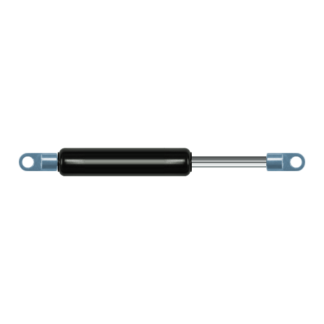

Replacement for Airax Rayflex 6856350102501 250N
Replacement gas spring for the Airax Rayflex 6856350102501 250 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Hahn.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as 563501 250N, 50006856350102501, 6856350102501.00.
The diameter of the cylinder of this gas spring is 15 mm. The diameter of the rod is 6 millimeter. The chrome part is called the rod. It has a length of 40 mm. The total length of this replacement is exactly 144 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 112 mm. This replacement gas spring (6856350102501) has a force of 250 Newton (N). This is not an official Airax Rayflex gas spring, but a so called replacement. This replacement gas spring is a Stabilus Industry Line gas spring. The force (250 N) and dimensions are nearly identical to the original.
