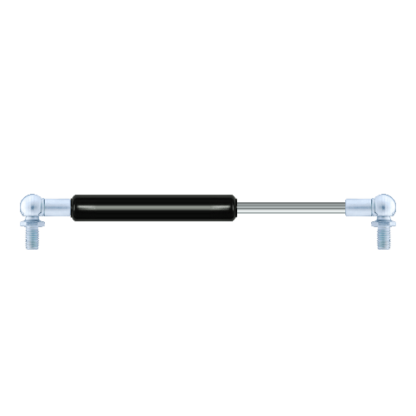

Replacement for Airax Rayflex 6856345702002 200N

$31.17




Replacement gas spring for the Airax Rayflex 6856345702002 200 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as 563457-CRR 200N, 50006856345702002, 6856345702002.00.
Airax Rayflex 6856345702002
WX22
elbow ball removal

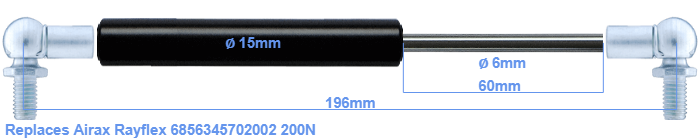

The diameter of the cylinder of this gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 60 mm. The total length of this replacement is exactly 196 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 152 mm. This gas spring (6856345702002) has a force of 200 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
