Replacement for Airax Rayflex 6856345700502 50N

$31.17




Replacement gas spring for the Airax Rayflex 6856345700502 50 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as 563457-CRR 50N, 50006856345700502, 6856345700502.00.
Airax Rayflex 6856345700502
WX22
elbow ball removal

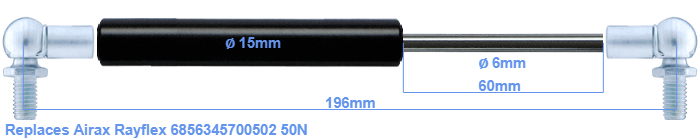

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 60 mm. The total length of this replacement gas spring is 196 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). The force of this replacement gas spring is 50 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are equal.
