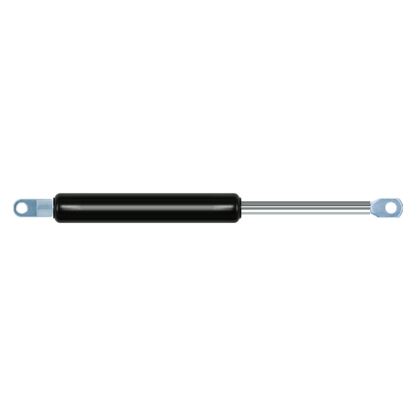

Replacement for Airax Rayflex 6851854511501 1150N

$36.29




Replacement gas spring for the Airax Rayflex 6851854511501 1150 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 20mm.


  • View this gas spring in our configurator.
    This gas spring is also known as 518545 1150N, 50006851854511501, 6851854511501.00.
    Airax Rayflex 6851854511501
    AS24AR16_8


    The bore of the house of this replacement gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this gas strut is 285 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 245 mm. The force of this replacement gas spring is 1150 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This is a HAHN gas spring. Nevertheless, the force and dimensions nearly equal.
