Replacement for Airax Rayflex 6851255403501 350N

$41.85




Replacement gas spring for the Airax Rayflex 6851255403501 350 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • This gas spring is also known as 512554 350N, 50006851255403501, 6851255403501.00.
    Airax Rayflex 6851255403501
    AR19

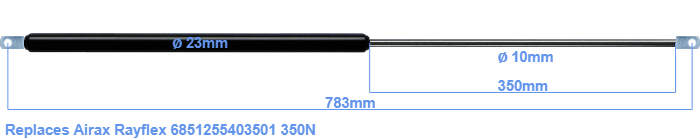

    The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 350 mm. The total length of this replacement is exactly 783 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 745 mm long (thread to thread). The force of this replacement gas spring is 350 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
