Replacement for Airax Rayflex 6851255108501 850N

$38.56




Replacement gas spring for the Airax Rayflex 6851255108501 850 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512551 850N, 50006851255108501, 6851255108501.00.
    Airax Rayflex 6851255108501
    AR19

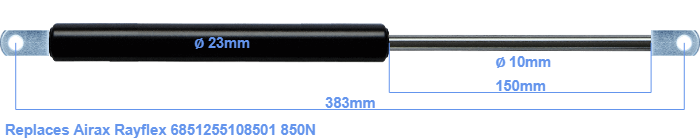

    The diameter of the cylinder of this gas spring is 23 millimeters. The rod has a diameter of 10 mm. The chrome part is called the rod. It has a length of 150 mm. The total length of this gas strut is 383 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 345 mm long (thread to thread). This replacement gas spring (6851255108501) has a force of 850 Newton (N). This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. The force (850 N) and dimensions are nearly identical to the original.
    Category:
    Replacement for Airax Rayflex 6851255108501 850N
