Replacement for Airax Rayflex 6851255107001 700N

$38.56




Replacement gas spring for the Airax Rayflex 6851255107001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512551 700N, 50006851255107001, 6851255107001.00.
    Airax Rayflex 6851255107001
    AR19

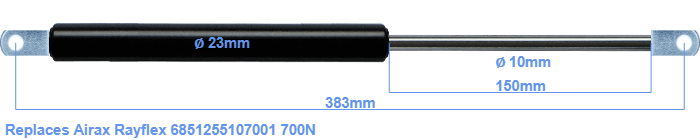

    The bore of the house of this replacement gas spring is 23 mm. The rod has a diameter of 10 mm. The rod (the chrome part) is 150 mm long. The total length of this gas strut is 383 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 345 mm. The force of this replacement is 700 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. The force (700 N) and dimensions are almost identical to the original.
    Category:
    Replacement for Airax Rayflex 6851255107001 700N
