Replacement for Airax Rayflex 6851254411501 1150N

$43.06




Replacement gas spring for the Airax Rayflex 6851254411501 1150 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


  • View this gas spring in our configurator.
    This gas spring is also known as 512544 1150N, 50006851254411501, 6851254411501.00.
    Airax Rayflex 6851254411501
    AR19

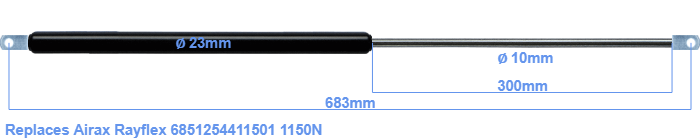

    The bore of the house of this replacement gas spring is 23 mm. The cross section of the rod is 10 mm. The rod (the chrome part) is 300 mm long. The total length of this replacement is 683 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 645 mm. This replacement gas spring has a force of 1150 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. The force (1150 N) and dimensions are almost identical to the original.
