Replacement for Airax Rayflex 6851254408501 850N

$43.06




Replacement gas spring for the Airax Rayflex 6851254408501 850 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512544 850N, 50006851254408501, 6851254408501.00.
    Airax Rayflex 6851254408501
    AR19

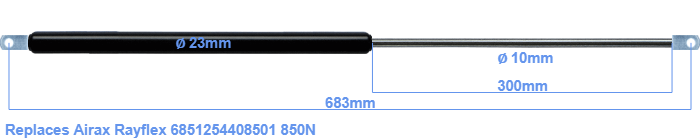

    The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The chrome part is called the rod. It has a length of 300 mm. The total length of this replacement is 683 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. The force of this replacement is 850 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (850 N) and dimensions are almost entirely identical to the original.
    Category:
    Replacement for Airax Rayflex 6851254408501 850N
