Replacement for Airax Rayflex 6851254407001 700N

$43.06




Replacement gas spring for the Airax Rayflex 6851254407001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512544 700N, 50006851254407001, 6851254407001.00.
    Airax Rayflex 6851254407001
    AR19

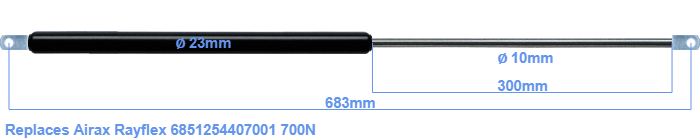

    The diameter of the cylinder of this gas spring is 23 millimeters. The rod has a diameter of 10 mm. The stroke is 300 millimeter long. The total length of this gas strut is 683 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. The force of this replacement gas spring is 700 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
    Category:
    Replacement for Airax Rayflex 6851254407001 700N
