Replacement for Airax Rayflex 6851252304501 450N

$35.65




Replacement gas spring for the Airax Rayflex 6851252304501 450 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • This gas spring is also known as 512523 450N, 50006851252304501, 6851252304501.00.
    Airax Rayflex 6851252304501
    AR19

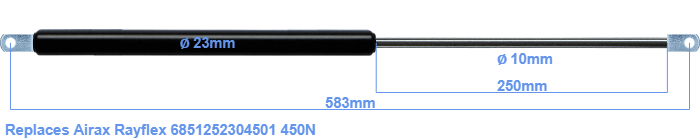

    The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The rod (the chrome part) is 250 mm long. The total length of this gas strut is 583 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. This replacement gas spring has a force of 450 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
