Replacement for Airax Rayflex 6851252304001 400N

$41.57




Replacement gas spring for the Airax Rayflex 6851252304001 400 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512523 400N, 50006851252304001, 6851252304001.00.
    Airax Rayflex 6851252304001
    AR19

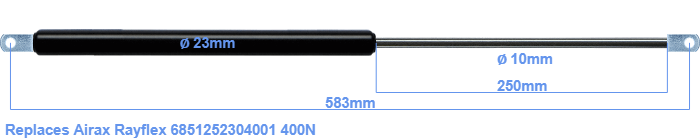

    The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke is 250 millimeter long. The total length of this replacement is 583 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. This gas spring (6851252304001) has a force of 400 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions nearly equal.
    Category:
    Replacement for Airax Rayflex 6851252304001 400N
