Replacement for Airax Rayflex 6851252212001 1200N

$40.07



Replacement gas spring for the Airax Rayflex 6851252212001 1200 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252212001 1200N quantity

Add to basket

This gas spring is also known as 512522 1200N, 50006851252212001, 6851252212001.00.

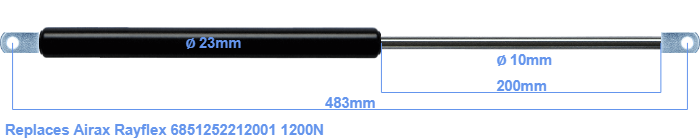

This gas spring has a cylinder diameter of 23 mm. The cross section of the rod is 10 mm. The rod (the chrome part) is 200 mm long. The total length of this replacement is exactly 483 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). This gas spring (6851252212001) has a force of 1200 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This gas spring was produced by Stabilus subsidiary HAHN. The force (1200 N) and dimensions are nearly identical to the original.
