Replacement for Airax Rayflex 6851252207001 700N

$40.07



Replacement gas spring for the Airax Rayflex 6851252207001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252207001 700N quantity

Add to basket

This gas spring is also known as 512522 700N, 50006851252207001, 6851252207001.00.

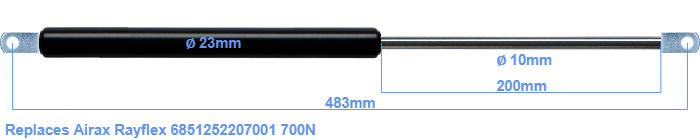

This gas spring has a cylinder diameter of 23 mm. The rod has a diameter of 10 mm. The stroke of the gas spring is 200 millimeter. In total, the length is 483 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. This replacement gas spring (6851252207001) has a force of 700 Newton (N). This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
